Product Features
WIDE-CAPACITY FULLCUT™ SAWHEAD

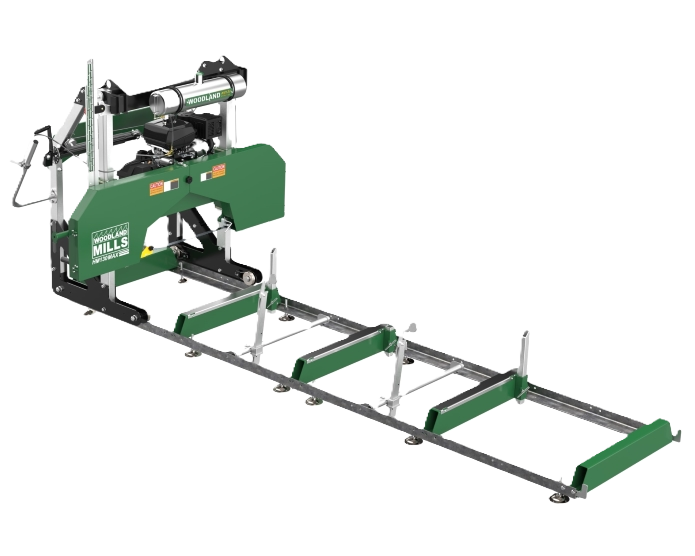

The HM130MAX® is a wide capacity mobile sawmill for sawyers looking to create popular live edge slabs. It features our FULLCUT™ sawhead design, which matches a 30” (76 cm) diameter log capacity with a 30” (76 cm) throat opening, to produce stunning high-value live edge boards. Unbelievable cut accuracy and precision lets you cut veneers as thin as 1/16” (2 mm). You can also cut within 1” (25 mm) of the deck, ensuring you maximize your usable board foot output.
EFFICIENT POWER FOR BIGGER LOGS
A reliable 14 HP 4-cycle Kohler gas powered electric start engine powers the HM130MAX®. The engine features a slant cylinder design with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean 4-stage air filtration systems ensures only clean air enters the engine for maximum power and engine lifecycle. The industrial centrifugal clutch offers easy gas-and-go operation. An electric and recoil start option comes standard. A 12V battery is required for electric start and is not included with purchase.
HEAVY-DUTY 4-POST CARRIAGE ASSEMBLY
Our heavy-duty 4 post head design is reinforced with a back beam and welded top tubular crossbeam. The assembly is anchored between our precision laser-cut carriage side plates, to provide exceptional rigidity, and ensure smooth, accurate cuts.
PATENTED GAS AND GO AUTO LUBE SYSTEM
Every one of our sawmills features a gas and go auto lube system. This means the throttle handle engages the engine RPM, saw blade and patented auto lube system simultaneously. This system makes the process of cutting lumber quick and efficient and reduces the number of steps required by the operator.
ALUMINUM LUBRICANT TANK
Our sawmills are equipped with a weather-resistant aluminum lubricant tank, ensuring long-lasting performance in the most adverse conditions. The tank's needle valve allows precise control over the flow to the auto lube valve, enabling fine-tuning as needed.
CONSTANT-PRESSURE U-BUSHINGS
We’ve designed a unique constant-pressure U-bushing that facilitates a positive connection between the sawhead and the carriage posts while allowing the sawhead to move up and down smoothly. The U-bushings are constructed from glass-filled nylon, giving them a long service life.
RAPIDCHANGE® BLADE SYSTEM
The RapidChange® blade system is exclusive to Woodland Mills. RapidChange® is a tool-less approach for changing blades quickly that reduces the need for blade tracking adjustments between blade changes. Stacked Belleville washers act as a shock absorber for the blade while giving consistent blade tension in all temperatures, ensuring less stress on the blades.
DUAL RACE BEARING CARRIAGE WHEELS
The sawhead's carriage wheels have a dual race bearing. This provides the best connection between the rolling wheel and the track surface, to ensure stability from the wheels to the track to the sawhead. The radius profile in the groove and the square-topped tracks are designed to wear together to make a matched set over time. To keep the track free from debris, stainless steel wire sweepers clean the track while in use.
PRE-ASSEMBLED SAWHEAD
To reduce your assembly time, we carefully pre-assemble key components of the sawhead. Having the advantage of pre-assembled parts help you get up and running faster, saving you valuable time.
POWDER-COATED STEEL BLADE GUARDS
Our blade guards are built with durable, powder-coated metal for resilience and longevity. For added convenience during sawhead maintenance or blade changes, the guards are side hinged, allowing them to easily move out of the way and provide unobstructed access.
ADJUSTABLE THROTTLE CONFIGURATION
Our adjustable throttle assembly offers complete customization for individual needs. You can position both the throttle and push handle according to your preference based on track height, ensuring a comfortable operating experience.
EXPANDABLE TRACK SYSTEM
Our mills are designed to cut logs up to 10' 5" (3.1 m) long using the standard track configuration. You can unlock unlimited length potential by adding optional 6' 5" (1.95 m) track extensions. These extensions come with an extra log clamp assembly, log support, and required bunks, allowing you to customize the cutting length to your specific requirements.
OPTIONAL ACCESSORIES
Tailor your sawmill to suit your specific needs and maximize efficiency with our optional accessories. Choose from a comprehensive lineup of equipment, including a powerhead for automatic up-down control, a lapsiding attachment for added versatility, and a selection of log handling tools. Every one of our accessories is designed to make your job easier and expand the capabilities of your equipment.
GO MOBILE WITH WOODLANDER® TRAILER PACKAGE
Move your HM130MAX® between locations with the Woodlander® trailer. Packaged together, the HM130MAX® Woodlander® trailer gives you a better working height and provides you with mobility to bring the sawmill to different work sites or easily move into storage. Levelling jacks are provided so you can quickly level the trailer and tracks when deployed.
AUTO-LOCKING SAWHEAD
The auto-locking sawhead ensures precise and consistent control. Simply push the handle in and rotate through 16 locking locations to move the sawhead up or down. Coupled with an acme lead screw, you’ll get precise adjustments accurate to within 1/64”. Traditional magnetic log scale rulers are also included to line up precision cuts.
AUTO-LOCKING ADJUSTABLE BLADE GUIDE
The premium Auto-Locking Adjustable Blade Guide is constructed using stainless steel V-rollers and a matched machined aluminum arm to keep guides close to the wood being cut and reduce blade wander. It comes standard on the 14 HP HM126, HM130MAX® and HM136MAXTM models.
PRECISION MACHINED RIGID TRACK SYSTEM
The sawmill head rolls along a rigid 2.5″ x 4″ (63 mm x 101mm) machined L-channel, cross supported with heavy-duty 3″ x 6″ (76 mm x 152 mm) rectangular log bunks. These cross supports ensure the weight of the log is dispersed over a large bearing surface to avoid marking the log with indentations and provide additional rigidity to the track system. The track features two adjustable quick lock log clamps to securely hold the log while milling and consists of two 6’ 5” (1.95m) sections allowing for 10’ 4” (3.1m) log lengths. Additional 6’ 5” (1.95m) tracks can be attached to accommodate logs of any length. The track comes with 12 levelling legs with up to 4” (10 cm) of adjustment.
HIGH SPEED MACHINE BALANCED BANDWHEELS
Balanced using a high-speed machining process, our bandwheels ensure optimal consistency, minimizing vibrations and maximizing efficiency. Our bandwheels deliver cleaner, more accurate cuts with reduced blade deflection and increased durability.
THIN KERF BLADES
The HM130MAX® uses standard 1.25″ x 158″ x .042″ (32 mm x 4013 mm x 1 mm) Woodmaster hardened tipped blades, which are available through Woodland Mills. These blades maximize the greatest amount of lumber per log, with a blade kerf of just .080” (2 mm).
Specifications
Manuals and Drawings
Shipping and pick-up
Woodland Mills strives to make your shopping experience easy. We want to get your equipment to you as soon as possible. Once you place your order, you can trust that our customer service and delivery partners take care to ensure the best experience possible.
Shipping Weight: 1000 lbs (454 kg) *reflects base configuration
Remote locations and regions are excluded from flat rate shipping. If you are in a remote rural area, our sales staff will contact you to review additional shipping costs.
Warranty
At Woodland Mills, we put our customers first. If you have any questions about a product you purchased, you can contact us at 1-855-476-6455. The HM130MAX® is backed by the 3-year Woodland Mills warranty (excludes wearing parts and cosmetic damage). The Kohler engine is covered by a 3-year commercial Kohler manufacturer's warranty, honoured at any Kohler small engine dealer.
