A SMARTER WAY TO SPLIT

The evolution of two-way log splitters and how we built ours

Before Efficiency, There Was Effort

For generations, splitting firewood was simple. An axe. A maul. Maybe a wedge.

At its core, splitting wood is about overcoming the internal structure of the material. Wood fibers run longitudinally, and splitting occurs when force is applied across that grain until the structure fails along its weakest path. Manual tools rely on impact energy, converting swing speed into force at the point of contact.

This creates natural constraints:

• • Output is tied directly to physical effort

• • Force varies with each strike

• • Energy is lost through inefficiency in motion

• • Larger or knotted rounds require repeated attempts

Over time, fatigue becomes a limiting factor, not just for comfort but for performance. Effort does not scale.

The First Step Toward Mechanization

Before hydraulics, early attempts to improve efficiency came through mechanical systems. One of the more notable examples was the Hildreth Double Wood Splitter, a belt-driven machine that used rotational power to drive splitting force.These systems marked an important shift. Power began to replace manual effort, and splitting became partially mechanized, improving throughput over hand tools.

But mechanically driven systems had limitations. Force delivery was less controlled, output varied depending on load and speed, and systems were often complex and less adaptable to irregular material. They represented progress, but not yet a complete solution.

The Shift to Controlled Force

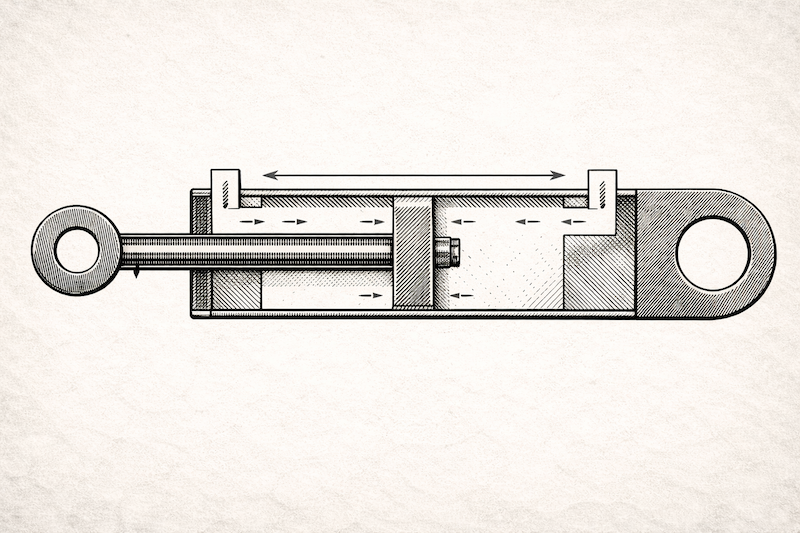

Hydraulic systems introduced a fundamentally different approach. Instead of generating force through mechanical linkage or rotation, they generate it through fluid pressure acting on a piston. Force equals pressure multiplied by cylinder area.

This transformed splitting into a controlled system:

• • Force is applied steadily, not momentarily

• • Output is consistent from cycle to cycle

• • The operator is removed from force generation

• • Larger and more irregular logs can be processed reliably

By the late 1950s, hydraulic log splitters began to emerge commercially. One of the most notable early examples was the Lickity Log Splitter, patented in 1959 by Clayton Brukner and produced by Piqua Engineering in Ohio, widely recognized as one of the first commercially successful hydraulic log splitters.Hydraulics replaced variability with repeatability, but while they solved the force problem, they introduced a new inefficiency.

The One-Way Limitation

Most hydraulic splitters operate on a single-direction cycle. Forward, the system splits. On return, it resets.

From a mechanical standpoint, the cylinder extends under pressure to perform work and retracts under reduced load to reposition. During retraction, the system is still moving and consuming time and hydraulic flow but not doing productive work.

Half of the cycle produces output. Half of the cycle is idle.

This is not a limitation of power. It is a limitation of system utilization. Fifty percent of available motion is unused.

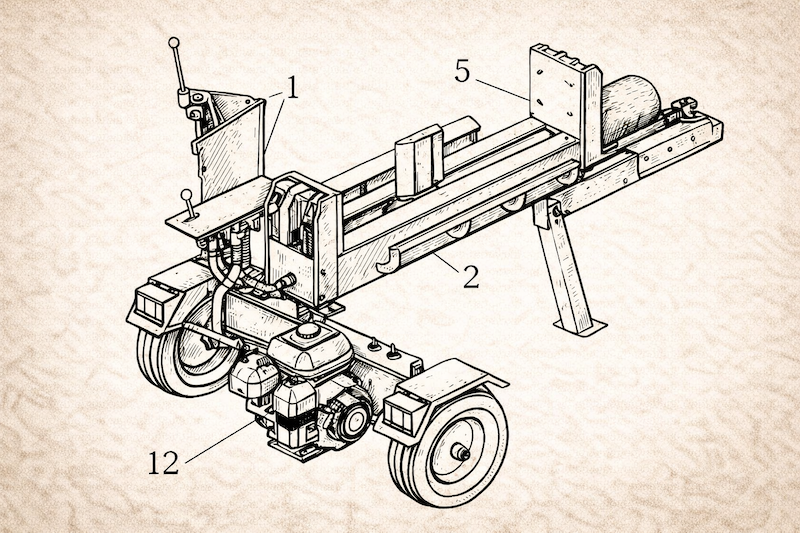

The Origin of Two-Way Splitting

In the 1980s, early two-way log splitter designs began to emerge, with some of the first known developments originating in rural Ontario, Canada. The underlying idea was straightforward. If motion exists in both directions, force can be applied in both directions. This led to the development of bi-directional splitting systems, where the machine splits on the forward stroke and again on the return.

Mechanically, this required a few key conditions to work effectively:

• • Opposing wedge geometry

• • A centered splitting zone

• • Structural symmetry to handle load in both directions

The result was a system that increased the number of productive events per cycle without increasing stroke length or overall machine size.

By the early 2000s, the concept was further formalized through patents and adopted more broadly across the industry by both Canadian and U.S. manufacturers. By the time these early patents expired, two-way splitting was no longer a protected idea but an established approach, allowing manufacturers to focus less on the concept itself and more on execution, durability, and real-world performance.

While larger, high-output processing equipment can deliver greater overall throughput, this approach became a more efficient and practical way to process firewood for landowners and small-scale operations alike.

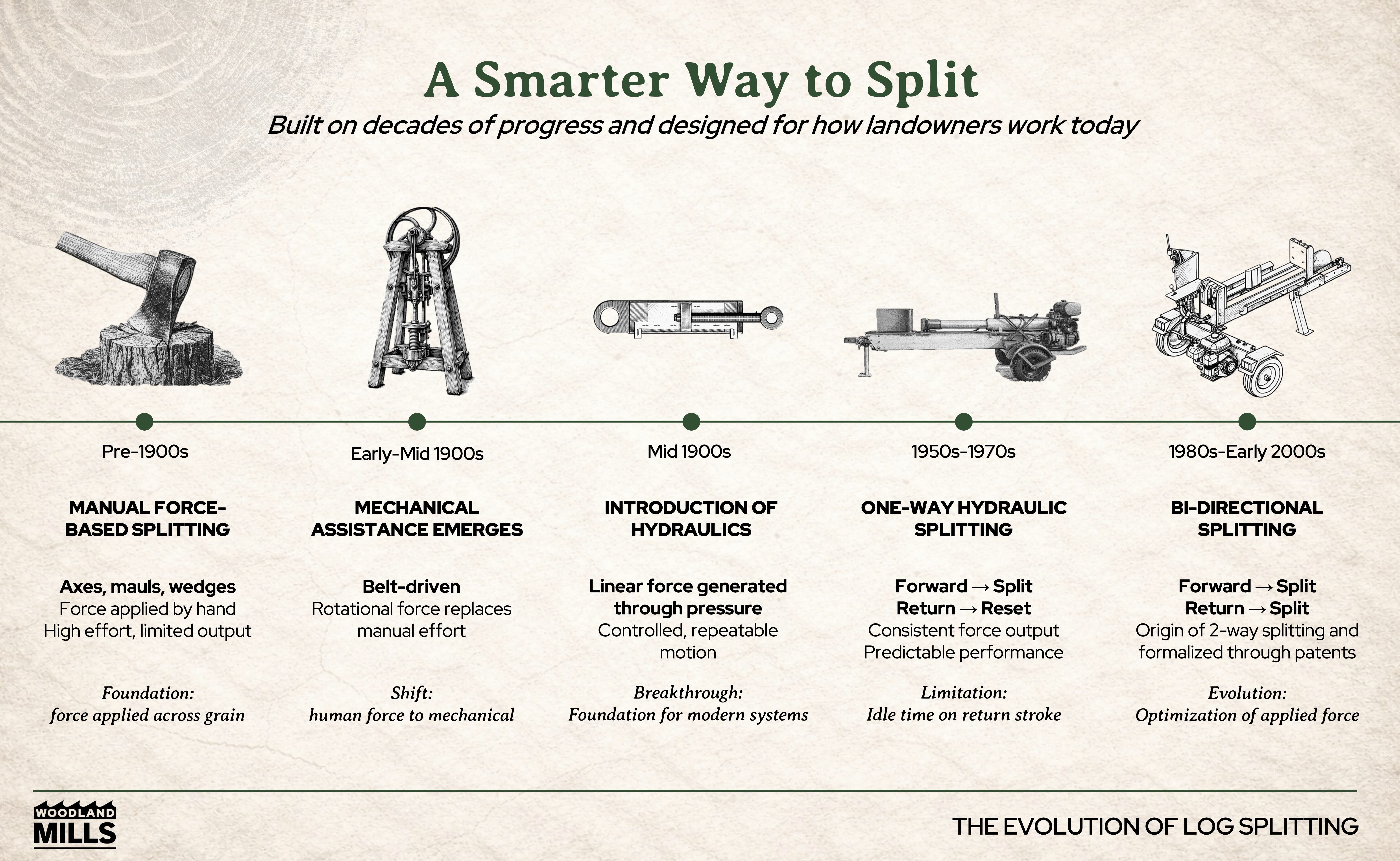

The Evolution of Log Splitting

What you are seeing today is a sequence of improvements.

Manual tools introduced force through effort. Mechanical systems introduced powered motion. Hydraulic systems introduced controlled force. One-way systems revealed inefficiency. Two-way systems improved cycle utilization. Industry adoption standardized the approach. Modern engineering refined execution.

Each step addressed a specific limitation. Efficiency is built incrementally.

Why Two-Way Systems Work

Two-way systems do not increase maximum force. They improve how often that force is used.

By applying force in both directions:

• • Idle time is eliminated

• • Cycle productivity increases

• • Hydraulic flow is used more effectively

• • Output per cycle improves

In practical terms, you are not working harder. You are working more efficiently within the same system.

This kind of improvement is not unique to two-way splitting. It reflects how equipment evolves over time, with each step building on what came before.

Entering a product category with decades of history offers a distinct advantage. Rather than starting from first principles, new designs can build on lessons learned through generations of use, continuing the engineering and improvement journey where others have left off.

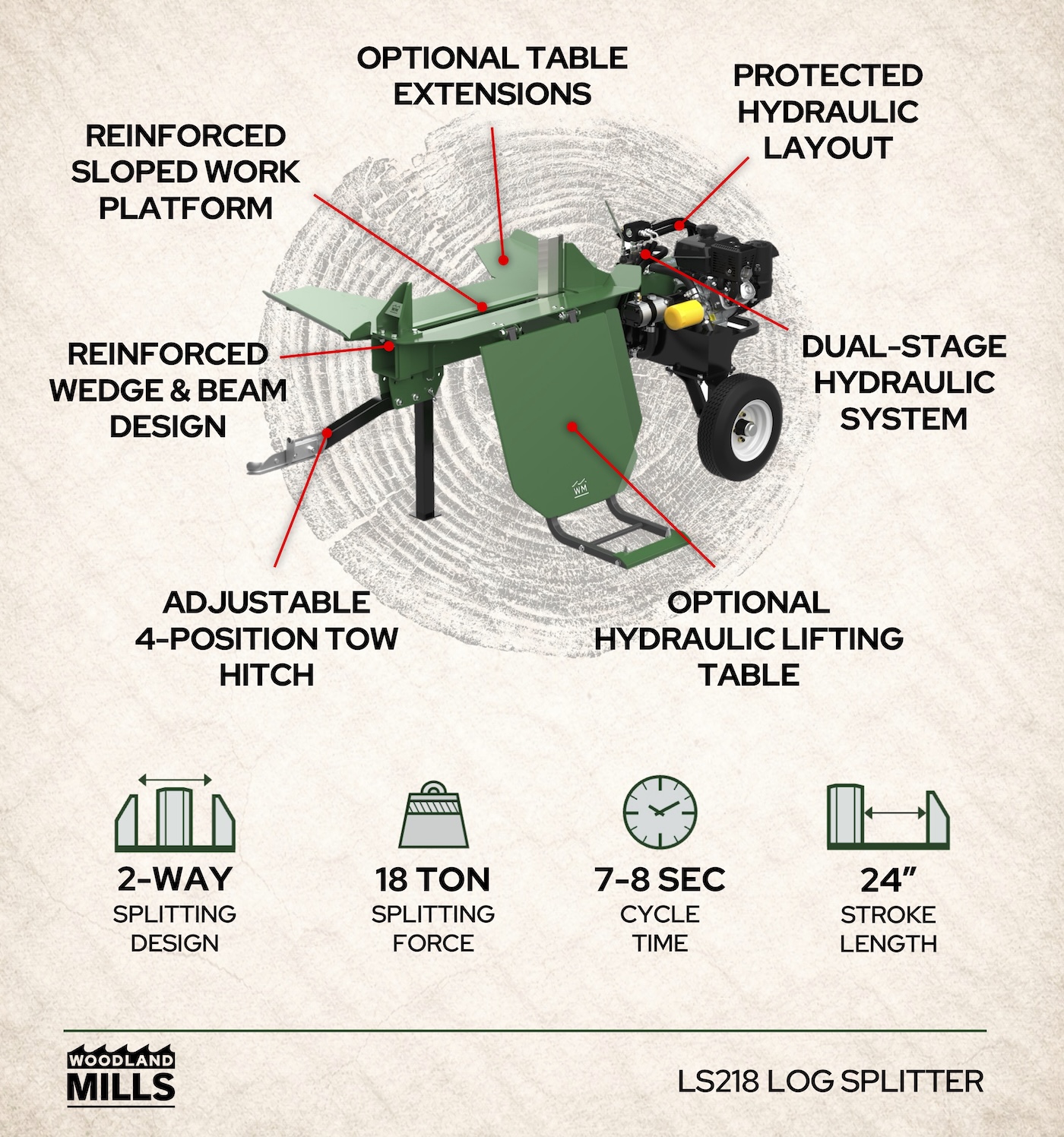

Engineering the LS218

That meant stepping back from individual features and focusing on the system as a whole. Where force is applied, how material moves, how the structure responds under load, and how the machine performs over time all had to work together.We centered our approach around a few key areas:

• • Structural integrity under load

• • Controlled material handling

• • Balanced power and hydraulics

• • Hydraulic protection and system layout

• • Real-world usability

Each of these plays a role in how the machine performs, not just in theory, but over repeated use in real conditions.

Structural Integrity Under Load

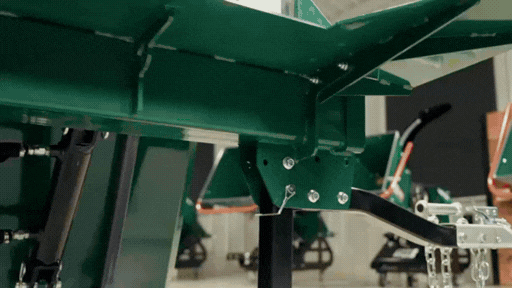

Bi-directional systems introduce alternating forces through the frame. That requires a reinforced wedge structure that maintains alignment, a beam designed to resist deflection under repeated load, and rigid connections between components to prevent energy loss. If structure moves, force is dissipated. The goal is to keep force in the material, not the machine.

In practice, this means more consistent splitting, fewer stalls on difficult rounds, and a machine that holds its performance over time without needing constant adjustment or correction.

Controlled Material Handling

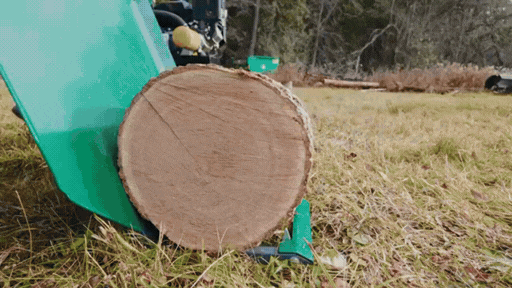

Efficiency depends on more than the hydraulic system. It depends on how material moves through it. The LS218 is designed to prevent rollback during loading, support logs consistently through the splitting zone, and reduce repositioning between cycles. These improvements compound into meaningful throughput gains.

For the operator, that means less chasing logs, fewer resets, and a smoother workflow from one piece to the next, especially when handling heavier or irregular rounds.

Balanced Power and Hydraulics

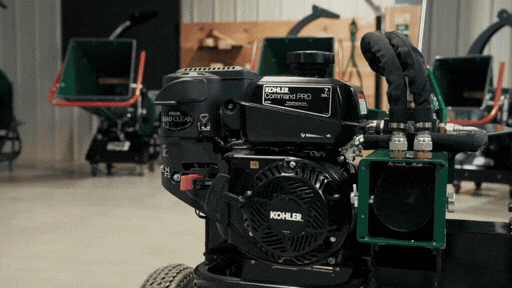

The system pairs a 7 HP Kohler Command PRO engine with a dual-stage hydraulic pump. This allows the system to respond dynamically, delivering higher flow for faster movement when resistance is low and transitioning to higher pressure as resistance increases. The result is simple. Speed when possible. Force when required.

In real use, this means you are not waiting on the machine when the wood is easy, and you still have the power when it is not. The system adapts to the material instead of forcing you to work around it.

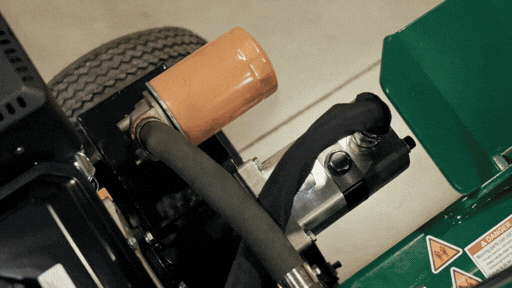

Hydraulic Protection and Layout

Hydraulic performance depends on durability. The LS218 incorporates protected hose routing, top-facing fittings, and a layout designed to minimize wear points and exposure. Durability is engineered into the system from the start.

Over time, this reduces the risk of damage, leaks, and unexpected downtime, keeping the machine working when you need it and reducing maintenance interruptions.

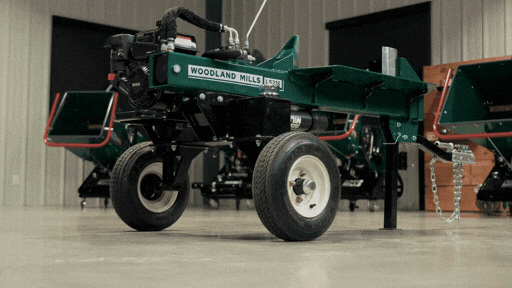

Real-World Design

Performance does not stop at the splitting stroke. In real firewood processing, efficiency is shaped by everything that happens around it.

Adjustable hitch height allows the splitter to be set at a working height that reduces bending, lifting, and repositioning when handling heavy rounds. Stable material support and debris management help keep logs where they belong, reducing the need to constantly clear the work area or reload fallen pieces.

Control placement influences rhythm. How naturally the operator can load, split, and reset without breaking flow or adding unnecessary motion becomes just as important as cycle time itself.

Even details like shipping design play a role. Equipment that ships efficiently is easier to move, assemble, and integrate into a working setup, reducing friction before the first piece of wood is ever split.

In practice, these decisions reduce fatigue, shorten workdays, and help maintain steady output. Performance is not defined only by force or cycle time, but by how consistently and comfortably the system supports real work over hours, not minutes.

A Better Way to Get Through the Work

Two-way splitting reflects how equipment improves over time. It begins with a simple observation. There was unused work in every cycle.

The solution was not to add complexity, but to make better use of the motion already built into the system. By applying force in both directions, the machine becomes more efficient without becoming more complicated.

Splitting firewood has not changed, but how you do it has. Two-way systems make better use of time, energy, and equipment. And when that approach is supported by thoughtful engineering and real-world design, it becomes a more practical and efficient way for landowners and small-scale operations to get through the work.
