HM130 Track Extension

Select options above to continue.

Stock Availability

Available for pickup in:

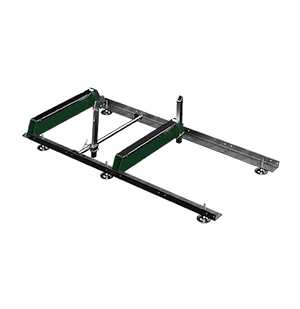

    6’5” track extension for the HM130 portable sawmill.

    Simply bolt the extension to the existing track and extend your cutting capability by 6’ 5” (1.95m). As an example, the HM130 sawmill is capable of milling 16’ 11” (5.1m) length logs with the addition of one extra track extension. Multiple track extensions may be added to the sawmill to increase the cut length beyond 16’ 11” (5.1m) lengths if required. Constructed with 1/4″ (6mm) thick 2.5″ x 4″ (63mm x 101mm) “L” channel which is cross supported with heavy duty 3″ x 6″ (76mm x 152mm) rectangle channels.

    These cross supports ensure the weight of the log is dispersed over a large bearing surface to avoid marking the log with indentations. These heavy duty cross supports also provide additional rigidity to the track system. These cross supports are also covered with a stainless steel cap to prevent certain woods (such as oak) from being stained from contact with painted surfaces.

    The track extension also comes with an additional adjustable log clamp to securely hold the log while milling.
